Column Covers / Beam Wraps

The AF-2000 and AF-1000 Series column covers are designed to provide an aesthetically appealing
facade for interior and exterior structural support columns.

Materials of Construction

0.125 Aluminum (3003/3105)
Options via quote:

  • 0.090 Aluminum
  • 16 gauge Stainless Steel (other gauges available)
  • 4 mm ACM (3mm and 6mm available)
  • Anodize Grade 5005 Aluminum

Coatings and Colors

Standard: 2-coat Kynar 500 Finish
Options: Anodized, Brushed Stainless, Smooth/MCM,
Premier 2-coat Kynar


Column Sizes

Maximum Length: 15'
Columns exceeding maximum length require horizontal joints
Minimum Diameter: 8"
Maximum Diameter: 34"
Columns exceeding 34" diameter require additional vertical joint(s)


Accessories

Horizontal Reveals (top, bottom and horizontal joint)
Trim Rings (Ceiling Trim or Base Trim)
Bases and Capitals
Sound Deadening Mast

Column Configurations

Round Columns
Options:

  • Oval Columns
  • Rectangular Columns

Joints

Hairline/Butt Joint (3/4" top clearance required)
Options:

  • 1/2" Vertical Caulk Joint (AF-1000 series)
  • 1/2" Horizontal Caulk Joint Reveal
  • Horizontal Tight Butt Joints

Panel Weights

1.78 #/SF (0.125)
Options:

  • 1.28 #/SF (0.090)
  • 2.52 #/SF (16 Ga SS)

Testing Information Available

Air Infiltration: ASTM E-283
Structural: ASTM E-330
Water Penetration: ASTM E-331

Warranty: 1 year Workmanship and 10 year finish (for standard construction) Bold text
above indicates standard construction.

Installation: Column covers are typically manufactured in two halves. They are attached directly to structural columns utilizing clips and angle attachments. Allow 2 inches clearance on each side of column for attachment and return ends. The hairline/butt joint design uses a 'snap together' design with integrated stem and groove. Design requires 3/4" top clearance to slide the stem half into the locking groove.

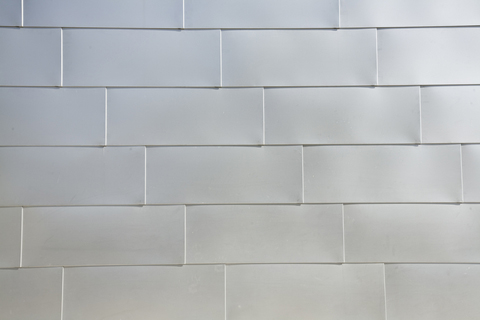

Metal Wall Panels

Looking for wall panels and accessories? AlumaFab panels are available in multiple stages of finish:

  • Complete finished panels
  • Back routing only
  • Bulk sheet
  • All attachment materials and accessories

Send the information listed below to info@alumafab.com along with your contact information and we will provide you with a quote within 2 business days.

Required info:

  • Material type
  • Gauge
  • Finish
  • Total SF
  • Panel dimensions
  • Panel quantity including corners
  • CAD drawings
  • Ship to zip code
  • Estimated date for delivery


We offer:

  • 063, 0.080, 0.090, 0.125 aluminum
  • 4mm ACM
  • Mill, Powder Coat, Kynar or Anodized finish
  • Pre or post fabrication finish

Break Metal

Looking for a break metal quote? Send the information listed below to info@alumafab.com along with your contact information and we will provide you with a quote within 2 business days.

Required info:

  • Material type
  • Gauge
  • Finish
  • Dimensions
  • Quantity
  • CAD drawings
  • Ship to zip code
  • Estimated date for delivery


We offer:

  • 040, 0.063, 0.080 aluminum
  • Mill, Powder Coat, Kynar or Anodized finish
  • Pre or post break finish
